Epson SureColor R5030L | 163cm (64") Resin Signage Printer

Description

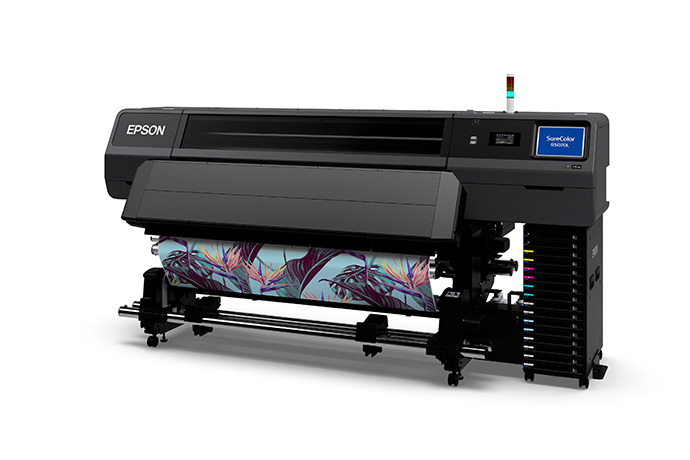

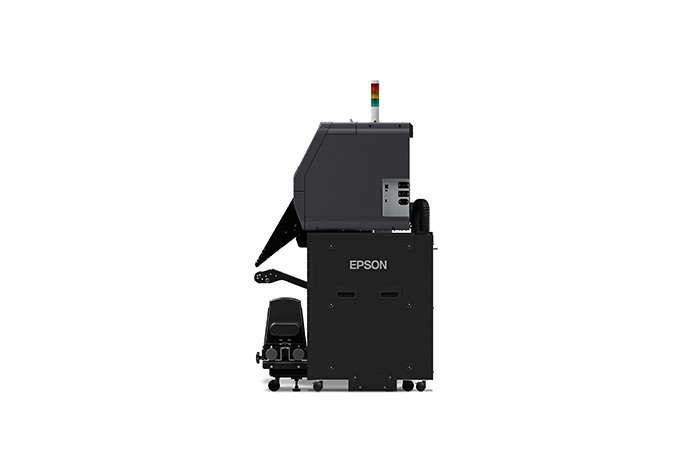

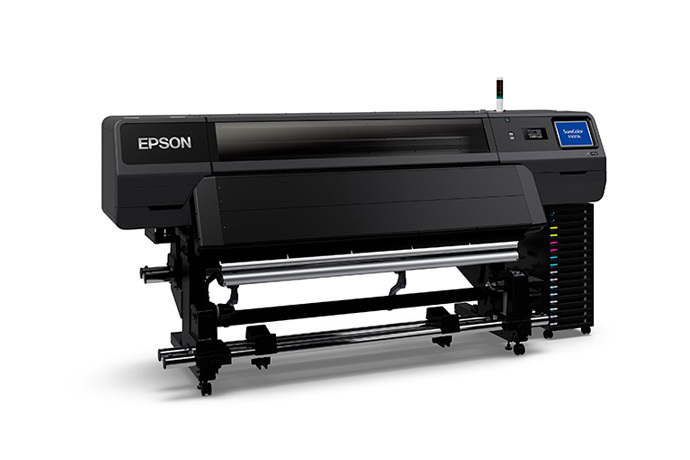

Epson SureColor R5030L

163cm (64") Roll-to-Roll Resin Signage Printer

Maximize productivity with versatile resin ink and bulk ink packs. As a high-volume print shop, you need powerful, versatile printing solutions. The Epson SureColor R5030L delivers astounding quality prints at true production speeds, powered by breakthrough resin ink technology. Designed for fast-paced environments, it offers immediate lamination, user-replaceable printheads, and ultra-low-cost ink operations.

Key Features

  • Amazing Image Quality Vibrant 6-color resin inks, plus optimizer, produce astounding-quality prints with smooth gradations and deep blacks.
  • Reliable Color Consistency Delivers consistently high image quality for repeat jobs, brand colors, wall tiling applications, and more.
  • Immediate Lamination High scratch resistance allows for immediate lamination, increasing total productivity and turnaround time.
  • Low Ink Costs Features 3L bulk ink packs for enhanced efficiency and a significantly reduced total cost of ownership.
  • User-Replaceable Printheads State-of-the-art PrecisionCore printheads allow for convenient self-serviceability, ensuring minimal downtime.
  • Diverse Application Support Print on fabrics, wallpapers, uncoated papers, adhesive vinyl, and traditional signage with a single versatile machine.

Additional Information

Technical Specifications

Printing

Printing TechnologyPrecisionCore inkjet technology
Maximum Print Resolution1,200 x 2,400 dpi
(With 600 x 600 dpi 8 Half Tone layers)
Printer LanguageESC/P raster

Print Speed (Production)

Adhesive Vinyl, Paper/Other9pass Production: 15.1 m²/h
Banner, Non-woven Wallpaper6pass Production: 21.0 m²/h
Textile14pass Production: 9.5 m²/h
Film26pass Production: 5.2 m²/h

Media Handling

Max Fabric Width300 - 1,626mm (64 inch)
Reel DiameterMax 200mm
Max Fabric ThicknessMax 1mm

Dimensions & Weight

Product Dimensions (Printing)2,949mm x 1,045mm x 1,774mm (W x D x H)
Product Dimensions (Stowed)2,949mm x 1,045mm x 1,605mm (W x D x H)
Product WeightApprox. 449kg
Control Panel10.9cm (4.3 inch) touch screen

Power & Electrical

Rated VoltageAC 200-240V (50/60Hz) x 2
Rated Current16A x 2
Power Supply Voltage AC AdapterYes
Power Consumption
  • Operating: Approx. 4.6kW
  • Ready: Approx. 220W
  • Sleep: Approx. 46W
  • Power Off: Approx. 1.1W

Operational Environment Standards

TemperatureOperating: 15ºC to 30ºC (20ºC to 32ºC recommended)
HumidityOperating: 20 – 80% (40 to 60% recommended)

System Requirements

Windows PC (Epson Edge Print) OS: Windows 7x64 SP1, 8x64, 8.1 x 64, 10x64
CPU: Multicore processor (Recommend: 3.0GHz or later)
Memory: 8GB or more
Storage: 50GB or more free space
Monitor: 1280×1024 or more
Windows PC (Edge Dashboard) OS: Windows 7x32/64 SP1, 8 x 32/64, 8.1x32/64, 10x32/64
CPU: Multicore processor 3.0GHz (Recommend: Intel Core i5 3.4GHz or later)
Memory: 4GB or more
Storage: 2GB or more free space
Monitor: 1280×1024 or more
Mac (Edge Dashboard) OS: Mac OS X(10.7) or later
CPU: Multicore processor 3.0GHz (Recommend: Intel Core i5 3.4GHz or later)
Memory: 4GB or more free space
Storage: 2GB or more free space
Monitor: 1280×1024 or more

Recommended System Requirements & Software

Utility Software (Bundled in CD) Windows: Installer Package, Communication Driver, Software Updater, EpsonNet Setup, Epson Edge Dashboard, EpsonNet Print, EpsonNet Config SE, Manuals Launcher, Epson Edge Print.
Utility Software (Web Delivery) Windows: Installer Package, Communication Driver, Software Updater, EpsonNet Setup, EpsonNet Print, EpsonNet Config SE, Epson Edge Dashboard, LFP Accounting Tool, Manuals Launcher.

Macintosh: Installer Package, Software Updater, Epson Edge Dashboard, Manuals Launcher.

Operational Environment Standards

Operating Temperature15ºC to 30ºC (Recommended: 20ºC to 32ºC)
Operating Humidity20% – 80% (Recommended: 40% to 60%)
System CompatibilityWindows 7/8/10 (64-bit), Mac OS X (10.7+)
Software SuiteEpson Edge Print & Epson Edge Dashboard
